Twin Stim Plus TENS & EMS Combo 2nd Edition, 4 Channels
SKU: OC-32028
Special pricing available on this product for healthcare professionals.
sign in / create account
Description

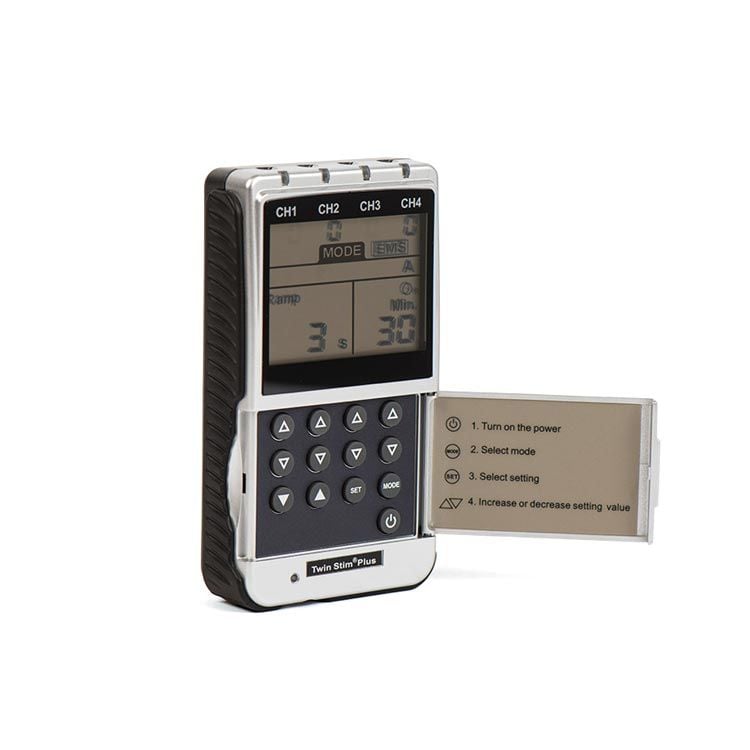

The TwinStim® Plus 2nd Edition combines five TENS modes and three EMS modes in a device with four channels and eight electrodes that can be operated in isolation or in pairs. The two timers each operate two channels, allowing more options for treatment. The timers can be set for up to 60 minutes, and have automatic countdown and shut off. Panel cover protects controls once treatment settings selected. Device features a patient compliance meter.
TwinStim® Plus 2nd Edition is a Class II medical device and comes with a 1 year manufacturer’s warranty. MDALL 95651.
Features
- Patient compliance meter stores up to 60 sets of operation records and has total recording time of 999 min
- 4 channels, isolated between channels
- 5 TENS treatment modes: Burst, Modulation, Constant, MRW, SD1 and SD2
- 3 EMS treatment modes: Constant, synchronous, and alternate
- Timer settings 1-60 minutes or continuous
- Automatic timer countdown and off switch
- Low battery indicator
System Includes
- 1 TwinStim® Plus 2nd Edition device
- 8 2” square adhesive electrodes
- 4 Lead wires
- 4 AA batteries
- 1 AC adaptor
- 1 Hard plastic carrying case
- 1 Instruction manual
Specifications
Display | LCD |
Channels | four, isolated between channels |
Wave Form | Asymmetrical bi-phase square pulse |
Amplitude | 0-100 mA |
Pulse Rate | 2-150 Hz, adjustable 1Hz /step |
Pulse Width | 50-300µs, adjustable 10µs/step |
TENS | Burst, modulation, constant, MRW, SD1 and SD2 |
EMS Modes | Constant, synchronous, alternate |
Adjustable Ramp | 1 to 8 sec, 1 sec/step |
On/Off Time | 2 to 90 sec, 1 sec/step |
Pre-programs | No |
Program Lock | No |
Compliance Meter | Up to 60 sets of operations records and 999 hours |
Timer | 1-60 minutes or continuous |
Low Battery Indicator | Yes |
Battery | 4 AA battery |
Size (LxWxD) | 5.4" x 2.4" x 1" |
Weight | 425 g with battery |
Warranty | 1year |
MDALL | 95651 |
