Clinnova
An Innovation in Clinical Infection Control
Clinnova
An Innovation in Clinical Infection Control

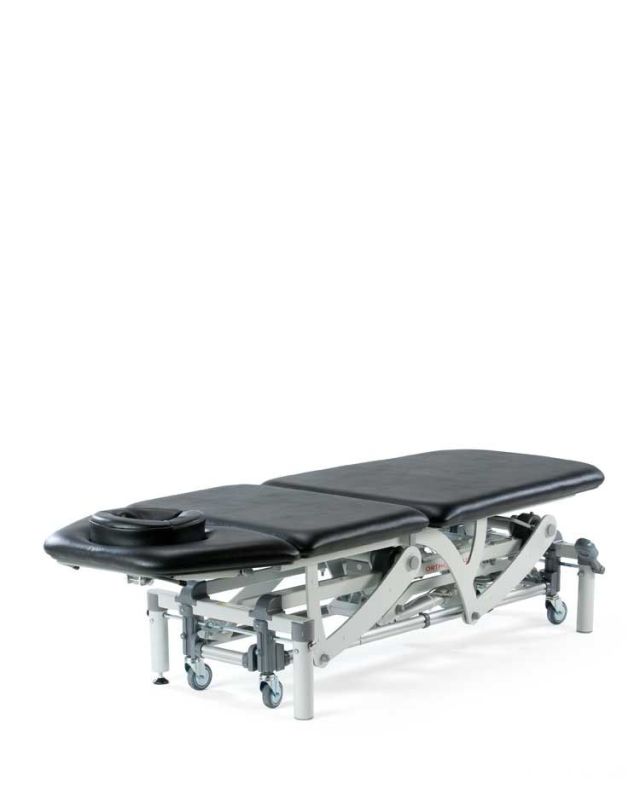

Manufactured by Seers Medical, the new Clinnova mobilization treatment table has set new standards in infection control, design and quality engineering. Its many advanced features include the new easy-clean upholstery backing, antibacterial powder-coated frame, antimicrobial upholstery sections, comfort crescent cushion, one-hand release head section, single-lever retractable wheel design, faster actuator and 180° perimeter foot switch. These innovative features combine to create a unique treatment table that accommodates a wide range of manual therapy techniques and examination procedures, while reducing the risk of infection.
Manufactured by Seers Medical, the new Clinnova mobilization treatment table has set new standards in infection control, design and quality engineering. Its many advanced features include the new easy-clean upholstery backing, antibacterial powder-coated frame, antimicrobial upholstery sections, comfort crescent cushion, one-hand release head section, single-lever retractable wheel design, faster actuator and 180° perimeter foot switch. These innovative features combine to create a unique treatment table that accommodates a wide range of manual therapy techniques and examination procedures, while reducing the risk of infection.
Setting a New Standard in Infection Control & Unique Design Features
Setting a New Standard in Infection Control & Unique Design Features
Antibacterial Frame & Optional Shroud
All Clinnova treatment tables feature an antibacterial powder coated frame as standard, that protects against microbial and fungal growth. With the optional base shroud (pictured and standard on the V-375 model) cleaning becomes effortless and easily accessible as small crevices are removed and replaced with larger easy to wipe surfaces.
Hygienic & Easy to Clean Backing System
An innovative and unique infection control solution for
treatment tables. This feature removes all visible staples, an
area where bacteria can grow. Traditionally, stapled
upholstery backs have been difficult areas to clean and
disinfect successfully. The Clinnova easy clean backing
system enhances the life of the treatment table and provides
an infection control solution like no other.
Antimicrobial Upholstery
The table includes 1.6” medium density foam, covered with a waterproof, antimicrobial, fire-retardant Mundial vinyl. This vinyl is impregnated with an antimicrobial additive treatment called Sanitize to protect against viruses, bacteria, mold & fungi. Sanitized fabrics can reduce viral activity, including coronaviruses, by over 86%. Mundial vinyl also has a very high Martindale rating of 150,000 rubs, which indicates it’s extremely hard wearing and will last for years if treated and cleaned correctly.
Perimeter Foot Switch
The 180° perimeter foot switch is motionless with the membrane sensors at an angle that makes it seamless for therapists to locate and change the table height while leaving their hands free to support and work with patients.
Retractable Wheel Design
Single lever activated at the foot end of the table. Simply
push the lever down to raise the table on its wheels for easy
transport. Once the table is properly positioned, flick the
lever upward to drop the table down onto its 4 legs. This
wheel system is a well proven design and has been produced
for over 30 years.
Antibacterial Frame & Optional Shroud
All Clinnova treatment tables feature an antibacterial powder coated frame as standard, that protects against microbial and fungal growth. With the optional base shroud (pictured and standard on the V-375 model) cleaning becomes effortless and easily accessible as small crevices are removed and replaced with larger easy to wipe surfaces.
Hygienic & Easy to Clean Backing System
An innovative and unique infection control solution for treatment tables. This feature removes all visible staples, an area where bacteria can grow. Traditionally, stapled upholstery backs have been difficult areas to clean and disinfect successfully. The Clinnova easy clean backing system enhances the life of the treatment table and provides an infection control solution like no other.
Antimicrobial Upholstery
The table includes a 1.6” medium density foam, covered with a waterproof, antimicrobial, fire-retardant Mundial vinyl. This vinyl is impregnated with an antimicrobial additive called Sanitize to protect against viruses, bacteria, mold & fungi. Sanitized fabrics can reduce viral activity, including coronaviruses, by over 86%. Mundial vinyl also has a very high Martindale rating of 150,000 rubs, which indicates it’s extremely hard wearing and will last for years, if treated and cleaned correctly.
Perimeter Foot Switch
The 180° perimeter foot switch is motionless with the membrane sensors at an angle that makes it seamless for therapists to locate and change the table height while leaving their hands free to support and work with patients.
Retractable Wheel Design
Single lever activated at the foot end of the table. Simply push the lever down to raise the table on its wheels for easy transport. Once the table is properly positioned, flick the lever upward to drop the table down onto its 4 legs. This wheel system is a well proven design and has been produced for over 30 years.
Additional Features that Go Beyond Infection Control
Anti-Entrapment Gas Struts
The backrest and head section are fitted with power-assisted anti-entrapment gas struts which provide a very safe and reliable control mechanism. They require the use of the release lever only when returning the section back to the “closed or negative” position.
Self-Lubricating Bearings
Precision made self-lubricating bearings which ensure that the frame repeatedly raises and lowers in a smooth and silent manner with minimal maintenance. SEERS Medical has cycle tested in excess of 120,000 repetitions with a patient weight of 220lbs.
One Hand Release Head
Section
Features an offset anti-entrapment gas strut. In a prone position, the patient’s view is un-obscured. Refer to description of anti-entrapment gas struts.
Faster Actuator Action
Change the Clinnova table height in half the time. By having faster actuator action, the table travels from its lowest to highest height in only 15 seconds.
Comfort Crescent
Cushion
Improved patient comfort during prone examinations and treatments with the ultra-soft crescent cushion. Can be removed when required and replaced by the breathing hole plug (included with table).
Sturdy Wheels
The wheels are 3” in diameter and have a combined load capacity of 660lbs which is more than enough to support the weight of the table with a patient and therefore suitable for many years of use. Not to be used to transport patients.
Adjustable Leveling Foot
Adjustable leveling foot for uneven flooring can easily be adjusted to set all 4 legs firmly on the ground for added stability.
Additional Features that Go Beyond Infection Control
Anti-Entrapment Gas Struts
The backrest and head section are fitted with power-assisted anti-entrapment gas struts which provide a very safe and reliable control mechanism. They require the use of the release lever only when returning the section back to the “closed or negative” position.
Self-Lubricating Bearings
Precision made self-lubricating bearings which ensure that the frame repeatedly raises and lowers in a smooth and silent manner with minimal maintenance. SEERS Medical has cycle tested in excess of 120,000 repetitions with a patient weight of 220lbs.
One Hand Release Head Section
Features an onset anti-entrapment gas strut. In a prone position, the patient’s view is un-obscured. Refer to description of anti-entrapment gas struts.
Faster Actuator Action
Change the Clinnova table height in half the time. By having faster actuator action, the table travels from its lowest to highest height in only 15 seconds.
Comfort Crescent Cushion
Improved patient comfort during prone examinations and treatments with the ultra-soft crescent cushion. Can be removed when required and replaced by the breathing hole plug (included with table).
Sturdy Wheels
The wheels are 3” in diameter and have a combined load capacity of 660lbs which is more than enough to support the weight of the table with a patient and therefore suitable for many years of use. Not to be used to transport patients.
Adjustable Leveling Foot
Adjustable leveling foot for uneven flooring can easily be adjusted to set all 4 legs firmly on the ground for added stability.
OrthoCanada is the exclusive dealer of Seers tables in Canada
Specifications
Working Load
Power Supply
120V
Height Range
51 - 100 cm (20" - 39")
Castors
Single lever retractable wheel design
Total Width
70 cm (27.5")
Upholstery Colors
Dark Grey, Dark Blue or Black
Total Length
193 cm (76")
Safety Marking
CSA/QPS approved
Head Section Length
39 cm (15.3")
Wheelchair Accessible
Yes
Head Section Adjusts
+10°, -90°
Height Control
Foot pedal or perimeter foot switch
Mid Section Length
52 cm (20.5")
Paper Holder Option
Optional
Foot Section Length
95 cm (37.4")
Shipping Method
Freight Delivery
Foot Section Adjusts
+90°
Working Load:
265 kg (584 lbs)
Power Supply
120V
Height Range
51 - 100 cm (20" - 39")
Castors
Single lever retractable wheel design
Total Width
70 cm (27.5")
Upholstery Colors
Dark Grey, Dark Blue or Black
Total Length
193 cm (76")
Safety Marking
CSA/QPS approved
Head Section Length
39 cm (15.3")
Wheelchair Accessible
Yes
Head Section Adjusts
+10°, -90°
Height Control
Foot pedal or perimeter foot switch
Mid Section Length
52 cm (20.5")
Paper Holder Option
Optional
Foot Section Length
95 cm (37.4")
Shipping Method
Freight Delivery
Foot Section Adjusts
+90°
