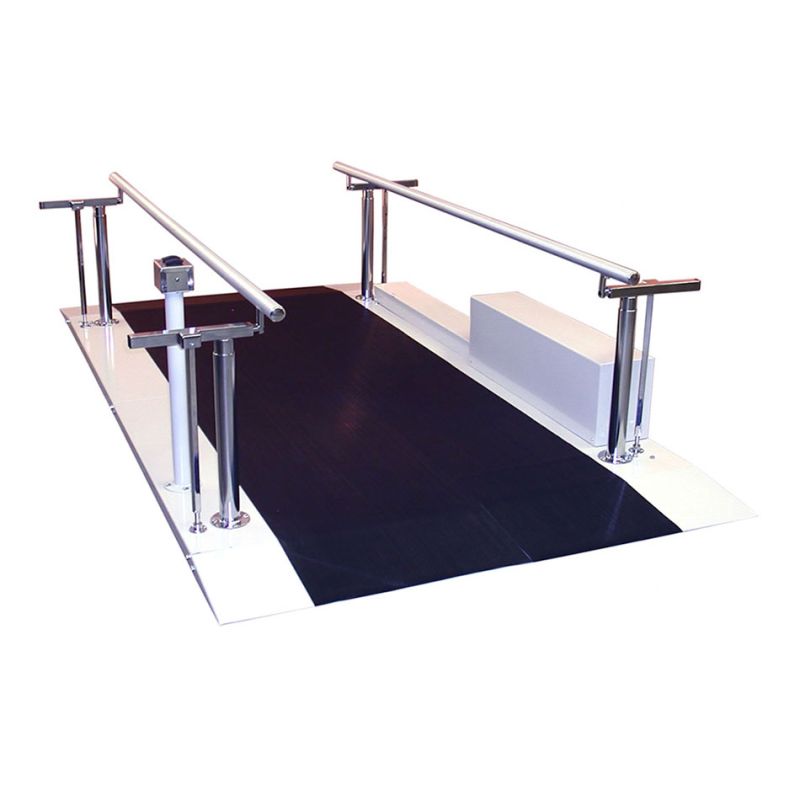

Electric Bariatric Parallel Bars

Length-8 ft;
Height Range: 25.25” - 39.75”; Width Range: 21.5” - 30.5”;

Platform Width: 54”; Width Between Uprights: 37.5”

Length-10 ft;
Height Range: 25.25” - 39.75”; Width Range: 21.5” - 30.5”;

Platform Width: 54”; Width Between Uprights: 37.5”

Length-12 ft;
Height Range: 25.25” - 39.75”; Width Range: 21.5” - 30.5”;

Platform Width: 54”; Width Between Uprights: 37.5”

Weight Capacity:
A maximum static uniform load of 1000 lbs (Bariatric).

Frame:
Heavy gauge steel.

Finish:
Polyurethane Pearl Grey standard; Porcelain optional.

Accessories:
Tapered Platform Extensions. Contact Tri W-G..Sales Dept for information about accessories.

Rocker Switch:     Rocker switch for adjusting various parallel bar positions--Voltage: 115VAC; Contact Rating: 10A;

Double Insulated. Power supply serves as main disconnect device from main power source.

Electrical:
Input: 208-230 VAC, 1.7-2.4 A, 60/50 Hz.

Duty Cycle: ON/OFF intermittently 1 min./10 min., respectively; Auto-Thermally Protected

UL. Class:
This medical device has been tested to the following standards:
ANSI/AAMI ES60601-1:2005
CSA C22-2 No. 60601-1:2008
IEC 60601-1:2005

Fuse:
Newark in One Part No. 88K2035 (0001.2514)
UL Standard 248-14, UL File Number E41599
Rated Voltage: 250VAC, 150VDC; Rated Current: 10A; Breaking Capacity: 500A-1500A;
Characteristic: Time-Lag T; Admissible Ambient Air Temp: -55C to 125C; Climatic Category: 55/125/21
ACC to IEC 60068-1; Tube Material: Ceramic; Endcap Material: Nickel Plated Copper Alloy;
Unit Weight: 1.16 G; Storage Conditions: 0-60C, Max 70% R.H.
